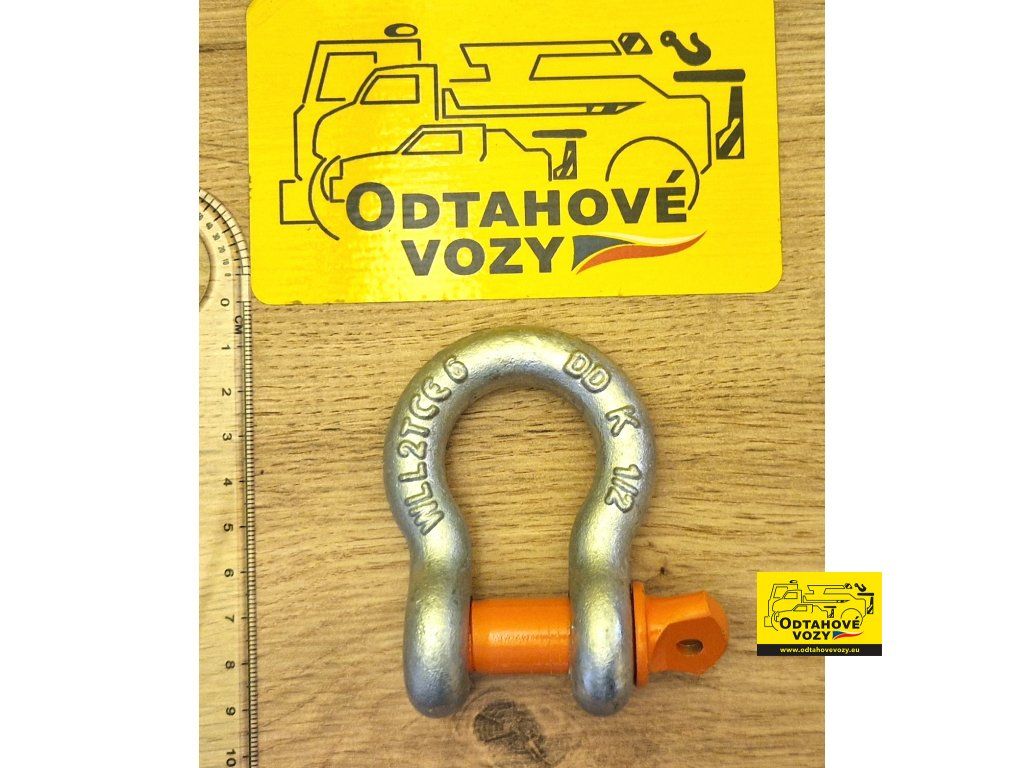

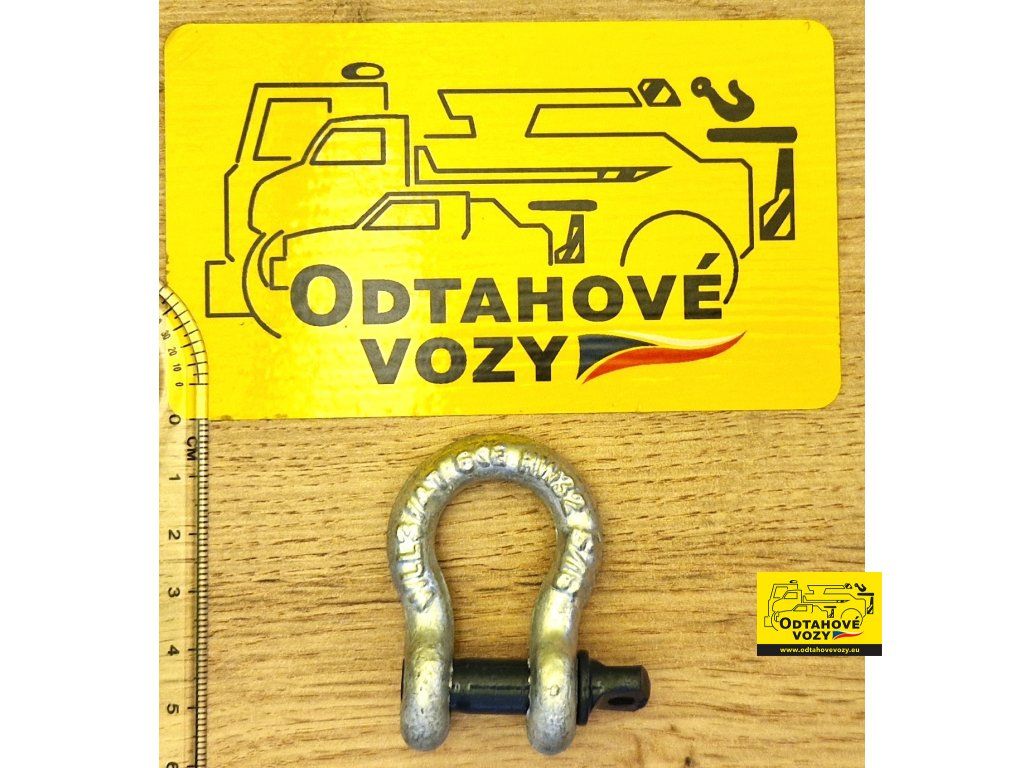

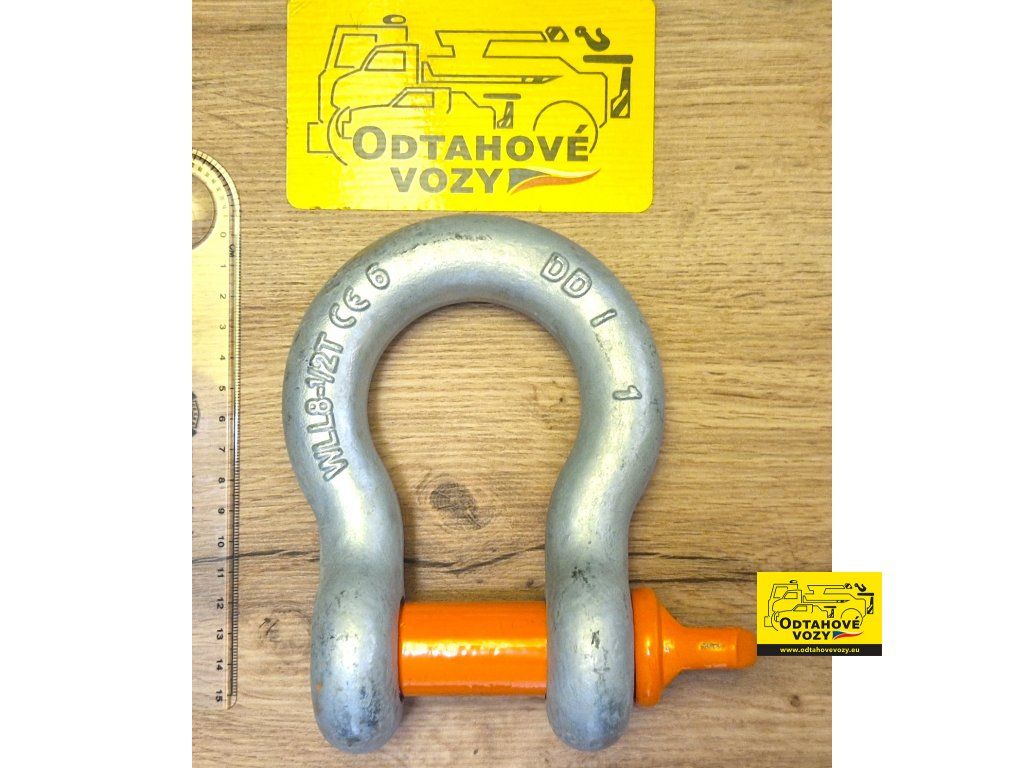

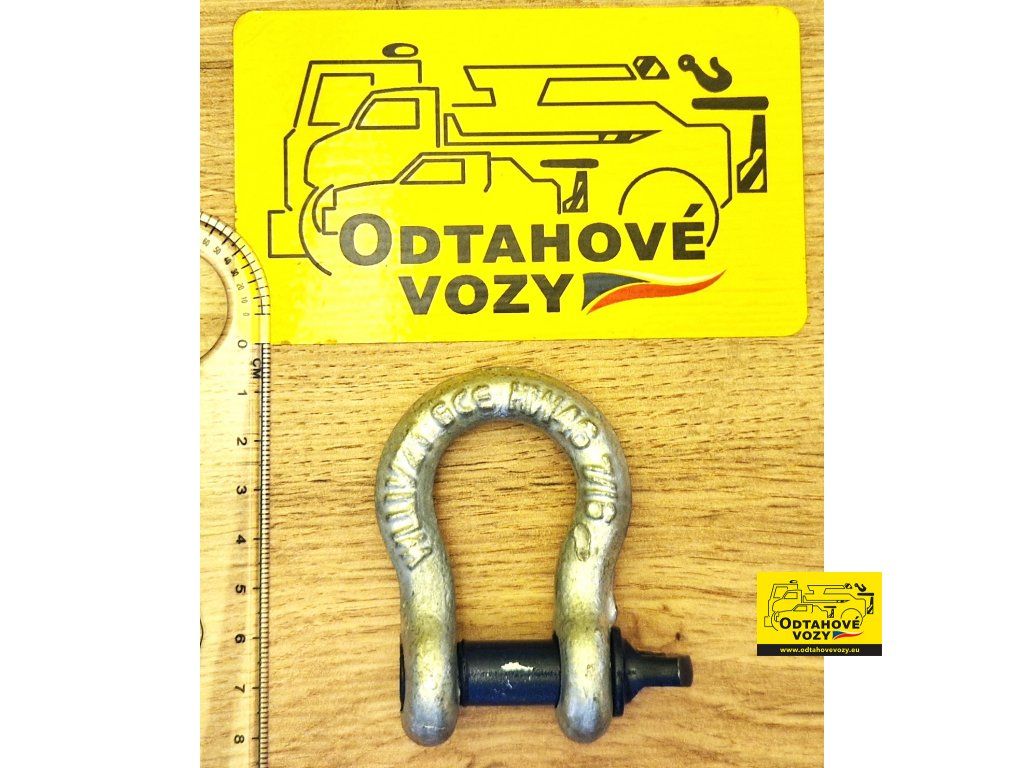

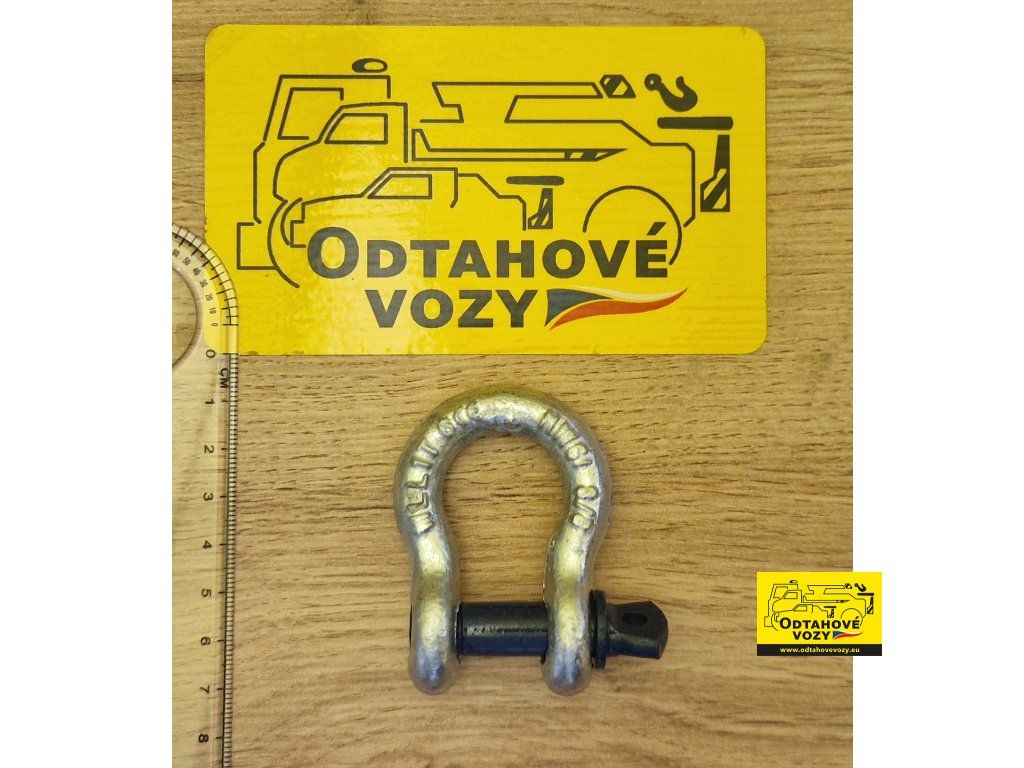

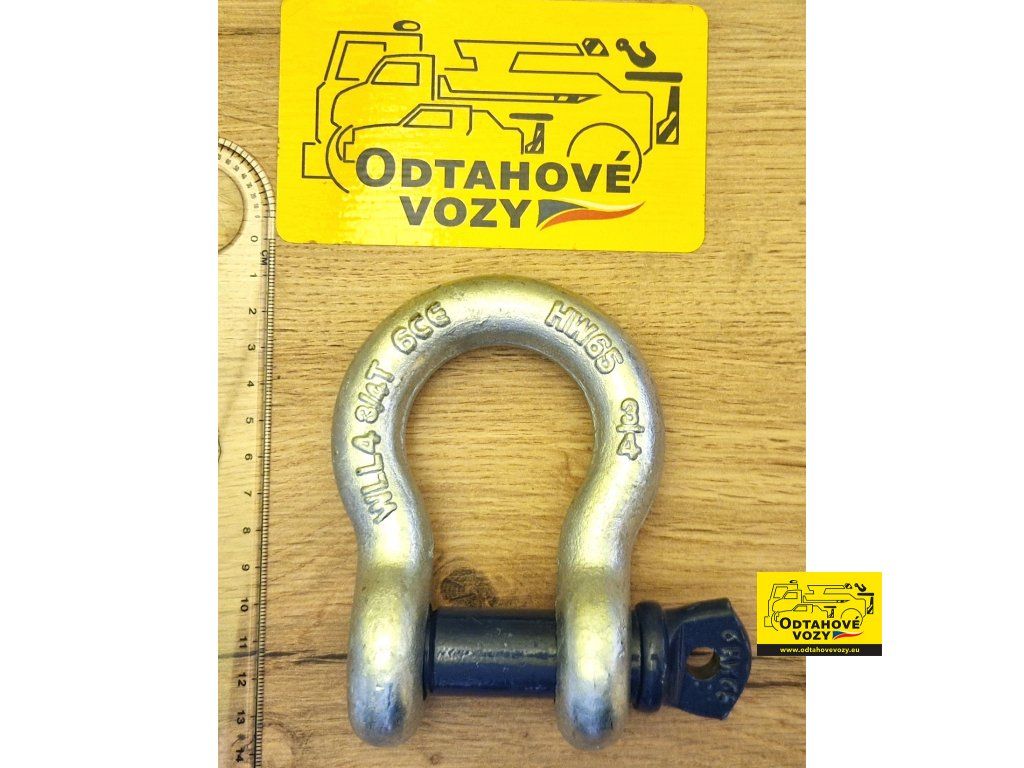

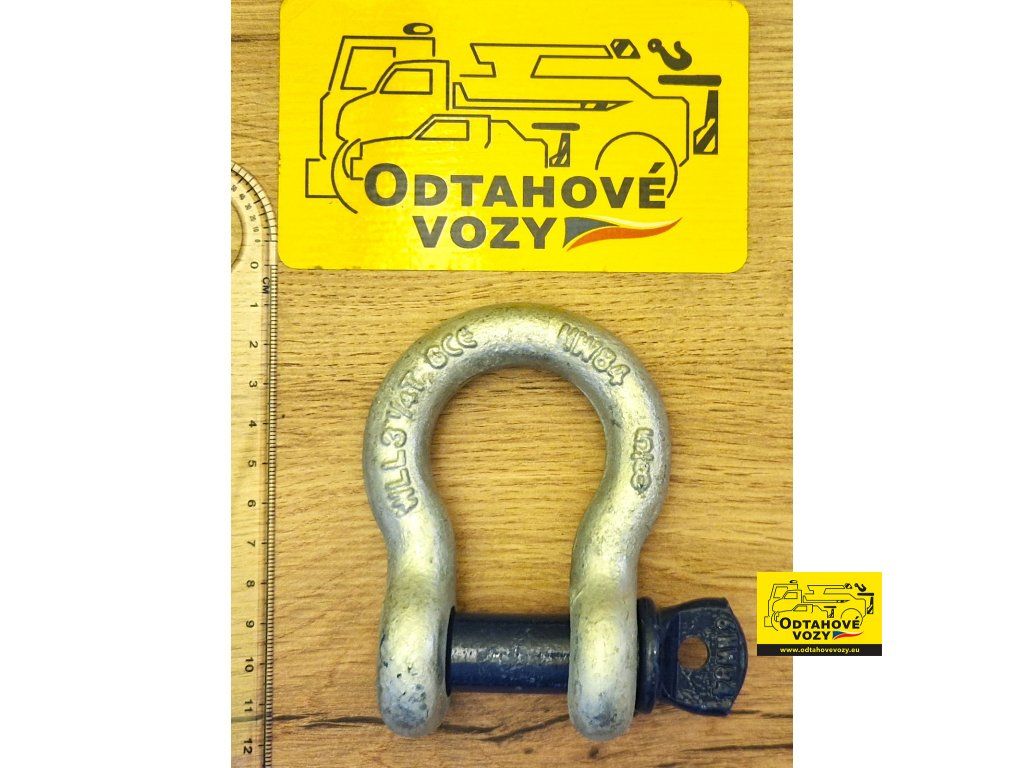

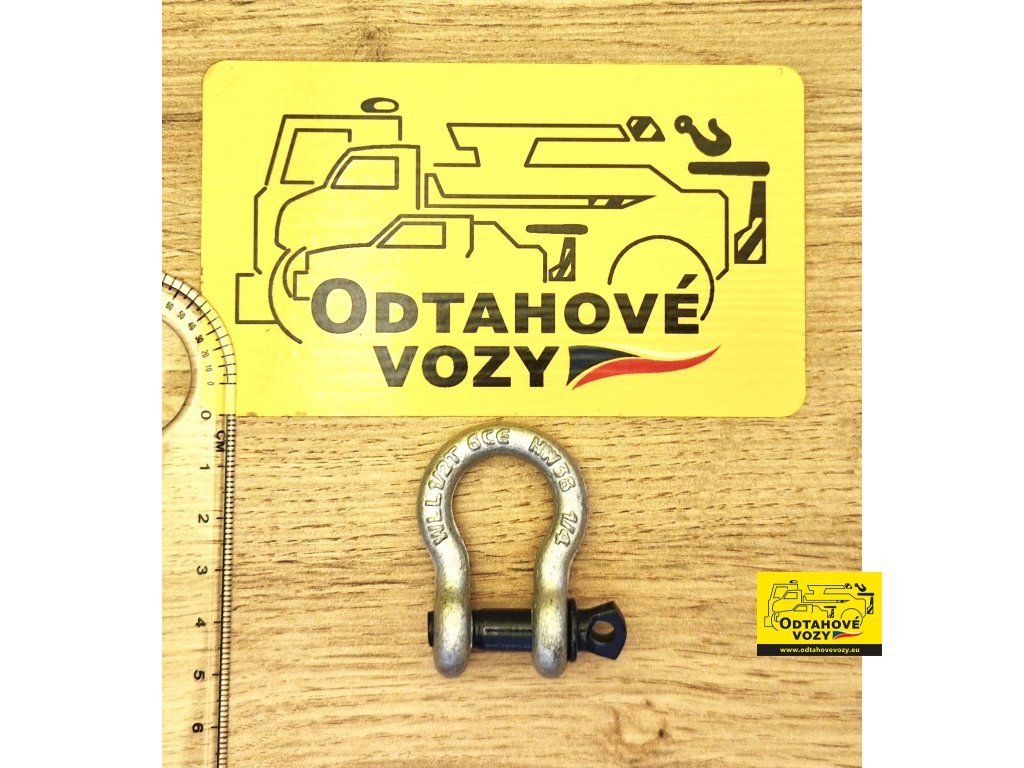

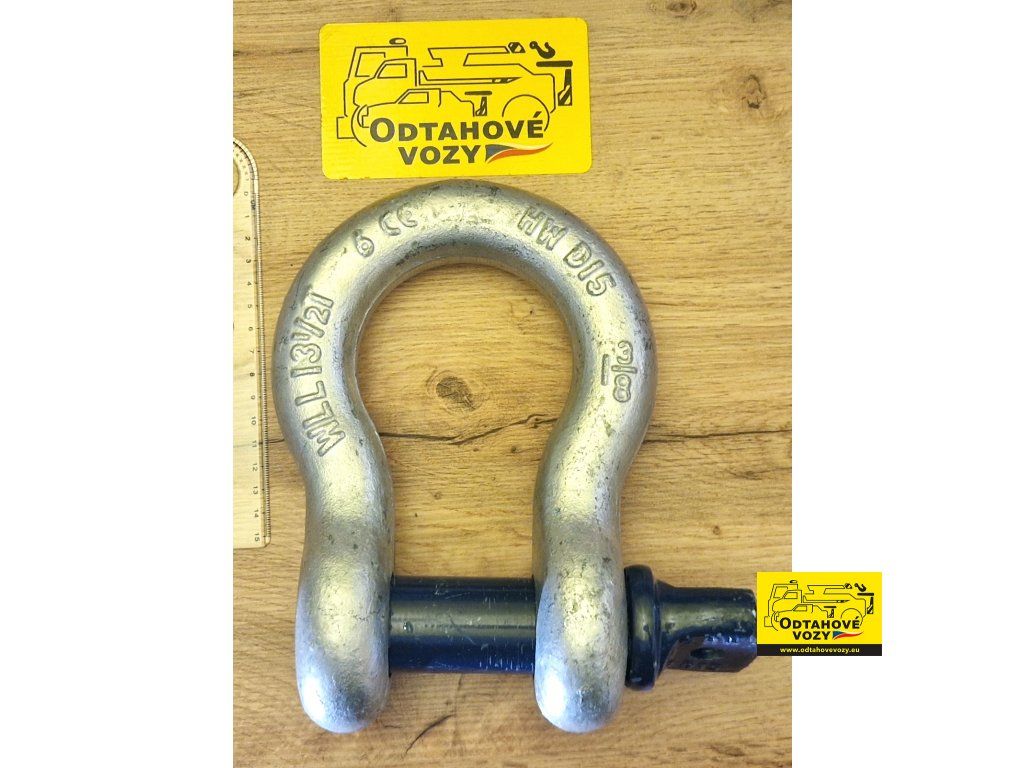

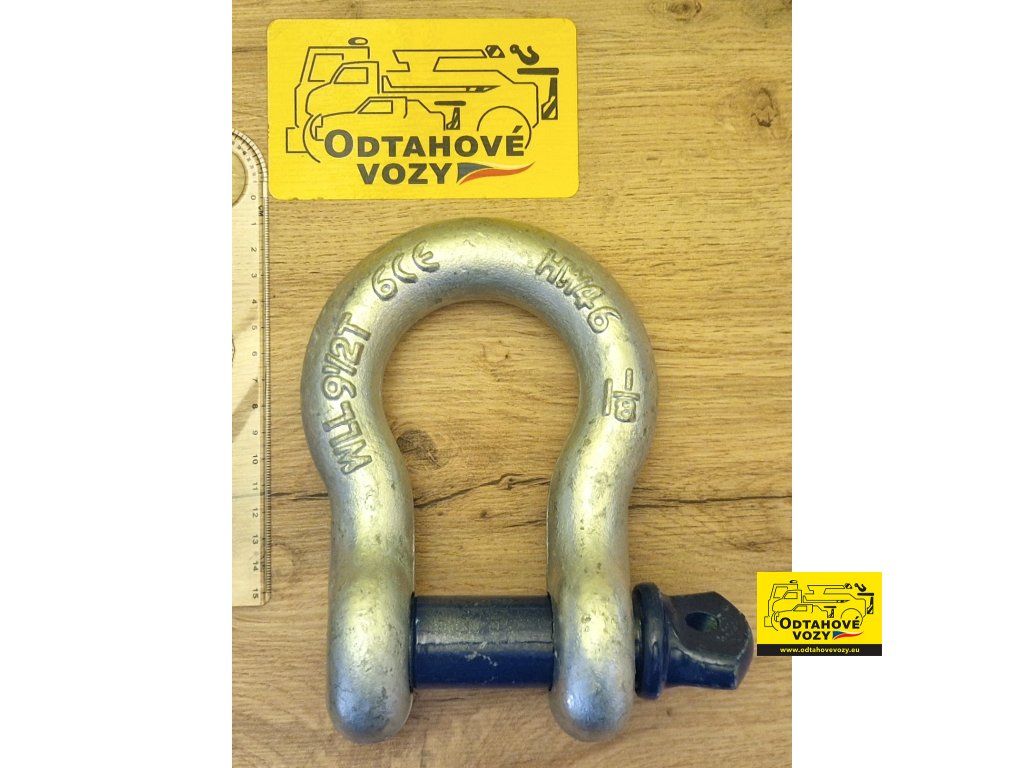

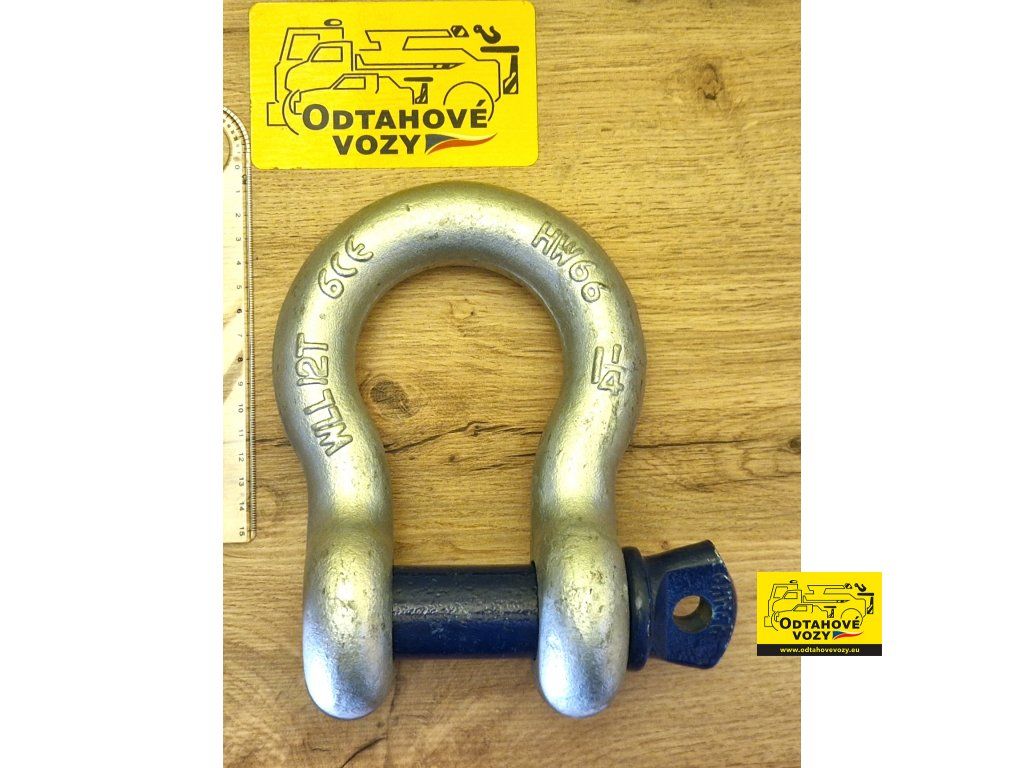

HA2 High-Strength Omega Shackle with Screw Pin, Galvanized
A galvanized, high-strength bow-shaped shackle used for connecting various parts with a rope or chain. Its design makes it particularly useful where frequent loosening, changing, and disassembly are required.
The pin screws into the shackle body and is not further secured. We recommend tightening the pins properly to prevent accidental loosening.
HA2 High-Strength Omega Shackle with Screw Pin, Galvanized
An Ω-type bow shackle with a screw pin that fastens into the shackle body (HA2). The pin is screwed into the body and has no other locking mechanism. It is advisable to tighten the pin sufficiently to prevent it from accidentally coming loose. The shackle is used for connecting various components to a rope or chain and is primarily used for applications requiring frequent disassembly, which is quick and simple thanks to its design.
The safety factor for these shackles is 1:6. This means the shackle will fail at a minimum of six times the WLL stated in the table.
| Size | WLL | d1 | d2 | d3 | d4 | b1 | b2 | h2 | Weight |
| --- | kg | mm | mm | mm | mm | mm | mm | mm | kg |
| 1/4 | 500 | 6,5 | 8 | 17 | 5/16 | 12 | 20 | 28 | 0,1 |
| 5/16 | 750 | 8,0 | 10 | 21 | 3/8 | 13 | 21 | 31 | 0,1 |
| 3/8 | 1000 | 10,0 | 11 | 25 | 7/16 | 16 | 26 | 36 | 0,1 |
| 7/16 | 1500 | 11,0 | 13 | 27 | 1/2 | 18 | 29 | 42 | 0,2 |
| 1/2 | 2000 | 13,0 | 16 | 30 | 5/8 | 21 | 33 | 48 | 0,3 |
| 5/8 | 3250 | 16,0 | 19 | 40 | 3/4 | 27 | 43 | 60 | 0,7 |
| 3/4 | 4750 | 19,0 | 22 | 48 | 7/8 | 32 | 51 | 71 | 1,0 |
| 7/8 | 6500 | 22,0 | 25 | 54 | 1 | 36 | 58 | 84 | 1,5 |
| 1 | 8500 | 25,0 | 29 | 60 | 1 1/8 | 43 | 68 | 95 | 2,4 |
| 11/8 | 9500 | 29,0 | 32 | 67 | 11/4 | 46 | 74 | 108 | 3,2 |
| 1 1/4 | 12000 | 32,0 | 35 | 76 | 1 3/8 | 52 | 82 | 119 | 4,3 |
| 1 3/8 | 13500 | 35,0 | 36 | 84 | 1 1/2 | 57 | 92 | 133 | 5,7 |
| 1 1/2 | 17000 | 38,0 | 41 | 92 | 1 5/8 | 60 | 98 | 146 | 7,8 |
| 1 3/4 | 25000 | 44,0 | 51 | 110 | 2 | 73 | 127 | 178 | 12,5 |
| 2 | 35000 | 51,0 | 57 | 127 | 2 1/4 | 83 | 146 | 197 | 18,5 |
| 2 1/2 | 55000 | 63,0 | 70 | 152 | 2 3/4 | 105 | 184 | 267 | 37,6 |
