Remote Control 12 - 24 V, 6 Channels, Complete Set
Wireless Remote Control 12/24V 6 Channels 868MHz
Universal radio controller with wireless remote control - primarily used in hydraulics and pneumatics.
It is used for the remote control of 3 sections in hydraulic distributors and winches , but it also finds application in electrical systems where remote control of up to 6 electrical installation elements is required.
Fungující spolupráce
93 % našich klientů, tedy jejich naprostá většina, se k nám opakovaně vrací a spolupracuje s námi dlouhodobě.
Jedinečnost na trhu
Vedle široké nabídky odtahové techniky nabízíme odtahové nástavby jakožto přední dodavatelé v ČR.
Nízké ceny
Oproti konkurentům na trhu stlačujeme ceny odtahových vozů, nástaveb a dalšího vybavení dolů a a držíme je nízko.
Zákazník na 1. místě
Poskytneme vám bezkonkurenční zákaznickou podporu – stačí zavolat nebo napsat a na všem se domluvíme.

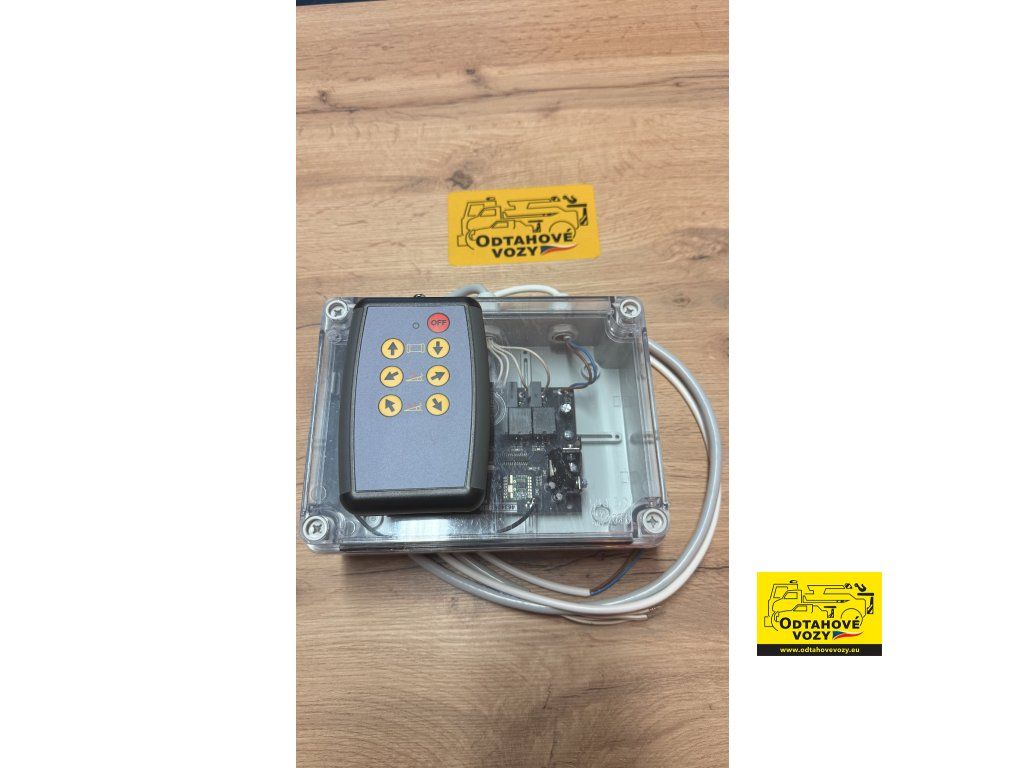

The set includes:
- Casing with receiver ( hermetic box )
- Six-button wireless remote control ( transmitter )
Each controller is coded during production (the serial number is visible on the controller and receiver casing) to be compatible with only one wireless controller included in the set.
The remote control is protected against unwanted, accidental pressing - it is unlocked by a sequence of the first two buttons from the first row:
Pressing the left and right upper arrows simultaneously for three seconds unlocks the remote control, and it is ready for use.
To lock it again, press the OFF button or wait approximately 2 minutes after the last button press.
| Category: | Spare parts for tow trucks |
|---|---|
| Weight: | 1.1 kg |
| Voltage: | 12 / 24 V |
| Operating frequency: | 868,32mhz |
| Number of radio channels: | 3 |
| Modulation type: | FKS |
| Coding: | Single serial number |
| Operating temperature: | -20-+60°C |
| Operating mode: | Monostable |
| Activation time: | 30 ms |
| Receiver dimensions: | 160X120X65mm |
| Remote control dimensions: | 80X120X25mm |
| Remote control power supply: | 2X 1.5 V R03 AAA batteries |
| 24-hour relay switching: | 40 ms |
